Applications:
Religious venues, auditoriums, cultural salons, conference rooms, transportation hubs, hotels.
Features:

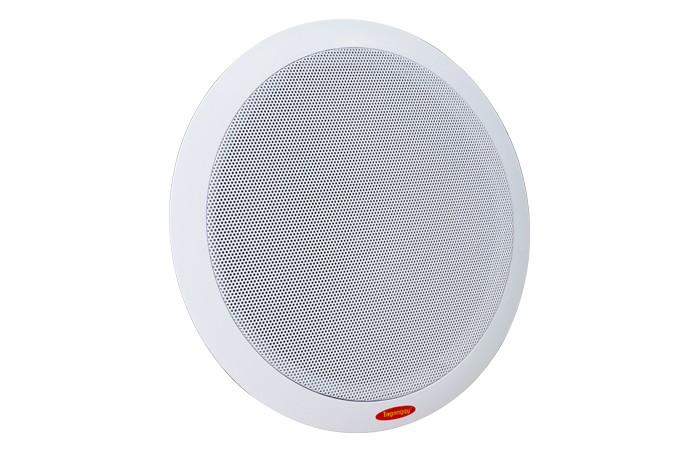

The CR series is a circular ceiling speaker designed for embedded installation. It is a high-quality two-way resonance box ceiling speaker with a coaxial point source design and a built-in high-power, low-loss, and low-distortion passive crossover. It is suitable for a wide range of commercial applications, meetings, and other audio and language playback, such as retail stores, restaurants, exhibition halls, science museums, airports, train stations, hospitals, conference rooms, etc. The panel is composed of ABS and metal mesh cover and is treated with anti-rust spray. Its versatile configuration can be embedded and installed on the ceiling. The quick and easy installation hardware and simple and beautiful support legs make installation and wiring more convenient.
Specifications:
Electrical Performance Parameters:
Frequency Response: 60Hz - 20KHz
Sound Pressure Sensitivity (1W/1m): 93 dB SPL
Maximum Continuous Sound Pressure Level: 107 dB SPL
Peak Sound Pressure Level: 110 dB SPL
Input: 8 Ω custom voltage
Coverage Angle (H×V) -6dB: Horizontal: 360°
Rated Output Power: 50W
Peak Output Power: 100W
Low Frequency: 1×8 inch precision low frequency transducer
High Frequency: 1×1 inch high frequency driver
Low Frequency: 30mm
High Frequency: 25mm
Dimensions: 270mm (diameter) x 105mm (height)
Cutout Size: 240mm (diameter); minimum ceiling cavity height: 105mm
Weight: Net Weight: 2.1 kg / Gross Weight: 2.6 kg
