Applications:
Religious places
Auditoriums
Cultural salons
Conference rooms
Transport hubs
Hotels
Features:

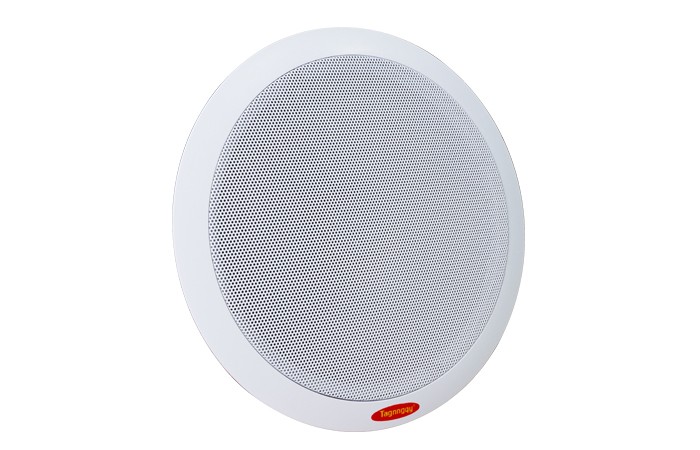

The CR series is a circular ceiling speaker designed for embedded installation. It is a high-quality two-way resonant box ceiling speaker with a coaxial point sound source design. It has a built-in high-power, low-loss, and low-distortion passive crossover, which is used for music and language playback in a wide range of commercial applications, such as retail stores, restaurants, exhibition halls, science museums, airports, train stations, hospitals, and conference rooms. The panel is made of ABS and metal mesh cover and treated with rust prevention and spray painting. Its multifunctional configuration can be embedded and installed in the ceiling. The quick and convenient installation hardware and simple and beautiful support feet make installation wiring more convenient.
Specifications:
Electrical Performance Parameters
Frequency Range: 90Hz - 20KHz
Sound Pressure Sensitivity (1W/1M): 90 dB SPL
Maximum Continuous Sound Pressure Level: 104 dB SPL
Peak Sound Pressure Level: 107 dB SPL
Input: 8 Ω Customizable Voltage
Coverage Angle (H×V) -6dB: Horizontal: 360°
Rated Output Power: 40W
Peak Output Power: 80W
Low Frequency: 1× 6-inch precision low-frequency transducer
High Frequency: 1× 1-inch high-frequency driver
Low Frequency Diameter: 30mm
High Frequency Diameter: 25mm
Dimensions: 230mm (diameter) x 90mm (height)
Cutout Dimensions: 200mm (diameter); Minimum Ceiling Clearance: 90mm
Weight: Net Weight: 1.6kg / Gross Weight: 2.1kg
