Applications:
Religious places
Auditoriums
Cultural salons
Meeting rooms
Transport hubs
Hotels
Features:

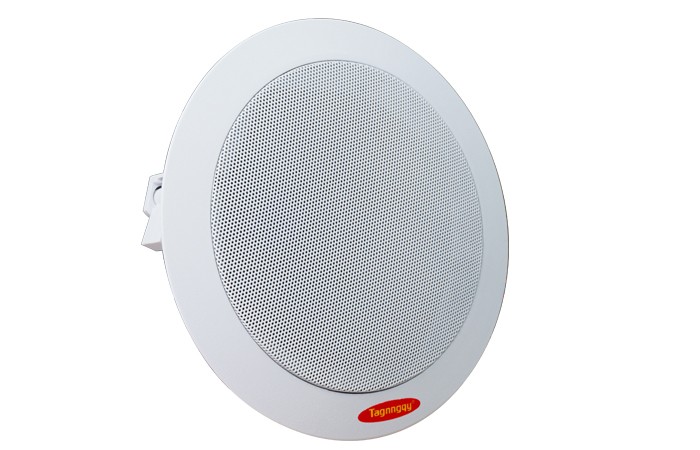

The CR series is a circular ceiling speaker suitable for embedded installation. It is a high-quality two-way resonant box ceiling speaker with a coaxial point source design and built-in high-power, low-loss, and low-distortion passive crossovers. It is used for music and speech playback in various commercial applications, meetings, etc., such as retail stores, restaurants, exhibition halls, science museums, airports, stations, hospitals, conference rooms, etc. The panel is made of ABS and metal mesh and is treated with rust-resistant spraying. Its versatile configuration can be embedded and installed on the ceiling. The quick and convenient installation hardware and simple and beautiful support feet make installation and wiring more convenient.
Specifications:
Electrical Performance Parameters:
Frequency response: 100Hz - 20kHz
Sound pressure level (1W/1m): 88 dB SPL
Maximum continuous sound pressure level: 102 dB SPL
Peak sound pressure level: 105 dB SPL
Input: 8Ω customizable voltage
Coverage angle (H×V) -6dB: Horizontal: 360°
Rated output power: 30W
Peak output power: 60W
Low frequency: 1× 5-inch precision low-frequency transducer
High frequency: 1× 1-inch high-frequency driver
Low frequency voice coil diameter: 30mm
High frequency voice coil diameter: 25mm
Dimensions: 203mm (diameter) x 80mm (height)
Mounting hole size: 170mm (diameter); minimum ceiling clearance: 80mm
Weight: Net weight: 1.25kg / Gross weight: 1.75kg
