Applications:
Features:
Equipped with top-grade ELNA audio capacitors from Japan, providing transparent, smooth, dense, and powerful sound.
Unparalleled singing texture, solid and highly linear vocal performance.
Perfect and accurate protection circuit, more effective in protecting the matched speakers.
All adopt automated manufacturing processes such as SMD patch and laser scanning. All semiconductor components are imported, greatly improving product reliability and consistency.
Fully considering the use of entertainment rooms and multi-coal bodies to enhance competitiveness and practicality.
Designed specifically for entertainment and multi-coal body conferences.
Specifications:

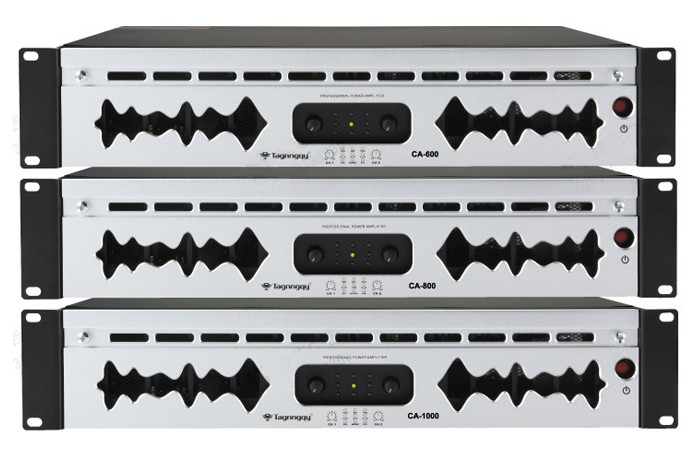

MODEL CA-600 CA-800 CA-1000
Output Power
(EIA 1KHz 1%THD) Stereo 8Ω 600Wx2 800Wx2 1000Wx2
4Ω 900Wx2 1200Wx2 1500Wx2
Bridged 8Ω 1800W 2400W 3000W
Output Interface SPEAKON and Binding
Frequency Response 20Hz-20kHz, ±1dB
Input Sensitivity 0.77V
Balanced Input Impedance 20kΩ/Balanced,10kΩ/un-Balanced
Signal-to-Noise Ratio ≥95dB
Distortion ≤0.03%
Rated Output Power 8 ohm 1KHz Separation ＞70 dB
Damping Coefficient f=1KHz 8 OHMS ＞240
Conversion Rate 15V/uS
Protection Soft Start,Short Circuit,Limiter,DC Fault,AC Line Fuse,Thermal Cut
Cooling System Two steps speed fan
Power Supply AC:220-230V 50Hz
Net Weight(kg) 11.3 12.8 14.3
Dimensions (WxDxH)-mm 482x333×88
