Applications:
Features:
Uses high-quality ELNA audio capacitors from Japan for transparent, smooth, and powerful sound.
Unparalleled singing texture, strong and linear vocal performance.
Has a comprehensive and precise protection circuit for more effective protection of matched speakers.
All use SMD patch and laser scanning and other automated manufacturing processes, and all semiconductor components are imported, greatly improving product reliability and consistency.
Fully considers the use in entertainment rooms and multi-coal bodies to enhance competitiveness and practicality.
Designed for entertainment and multi-coal body conferences.
Specifications:

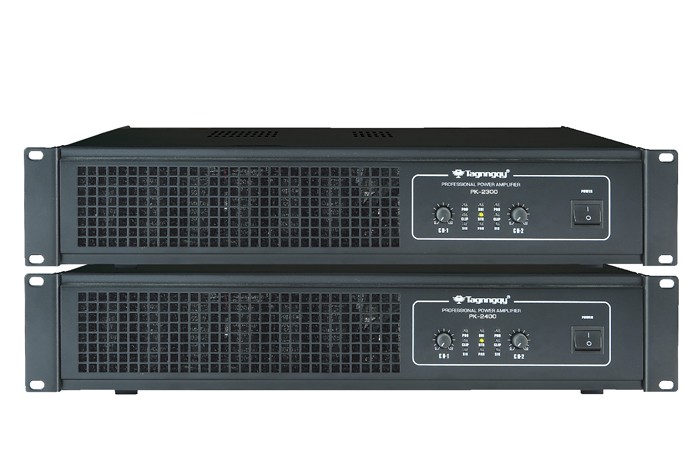

MODEL PK-2300 PK-2400 PK-2600 PK-2800
Max Output Power Stereo 8Ω 400Wx2 600Wx2 800Wx2 1000Wx2
4Ω 600Wx2 900Wx2 1200Wx2 1500Wx2
Bridged 8Ω 1200W 1800W 2400W 3000W
Output Interface SPEAKON and Binding
Frequency Response 20Hz-20kHz, ±1dB
Input Sensitivity 0.77V
Balanced Input Impedance 20kΩ/Balanced, 10kΩ/un-Balanced
Signal to Noise Ratio ≥95dB
Distortion ≤0.03%
Rated Output Power Separation ＞70 dB @ 8 ohm 1KHz
Damping Factor f=1KHz 8 OHMS ＞240
Conversion Rate 15V/uS
Protection Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse, Thermal Cut
Cooling System Two-step speed fan
Power Supply AC: 220-230V 50Hz
Net Weight (kg) 10.6 11.5 12.4 13.5
Dimensions (WxDxH)-mm 482×307×88 482×333×88
