Applications:
Auditoriums, multifunctional halls
Banquet halls
Meeting rooms
Features:

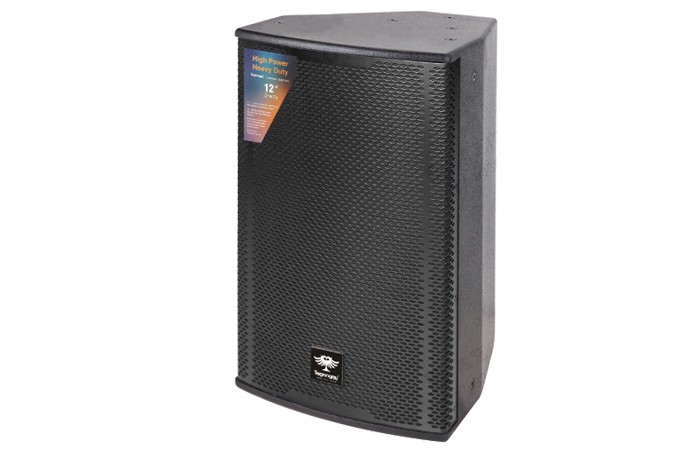

The VF-12 speaker consists of one 12-inch low-frequency transducer and one 1.75-inch horn high-frequency driver, with sweet, rich, and clear sound, highlighting the human voice and with a wide frequency range. The combination of traditional, accurate, and beautiful tones with modern popular tones brings you a new experience. The elegant and generous appearance design makes VF-12 particularly suitable for multifunctional halls, meeting rooms, banquet halls, and other places.
Specifications:
Electrical Performance Parameters:
Frequency Response Range: 55Hz - 20KHz
Sound Pressure Sensitivity (1W/1m): 98 dB SPL
Maximum Continuous Sound Pressure Level: 121 dB SPL
Peak Sound Pressure Level: 124 dB SPL
Input Impedance: 8Ω
Coverage Angle (H×V) -6dB: Horizontal 60°, Vertical 40°
Rated Output Power: 300W
Peak Output Power: 500W
Low Frequency: 1×12-inch precision low-frequency transducer
High Frequency: 1×1.75-inch precision high-frequency driver
Low Frequency: 65mm
High Frequency: 44mm
Enclosure: Internally reinforced 15mm thick high-strength birch plywood
Dimensions (W×D×H): 360mm×351mm×596mm
Weight: Net weight: 19kg / Gross weight: 20.5kg
