Applications:
Religious venues
Auditoriums
Cultural salons
Conference rooms
Transportation hubs
Hotels
Features:

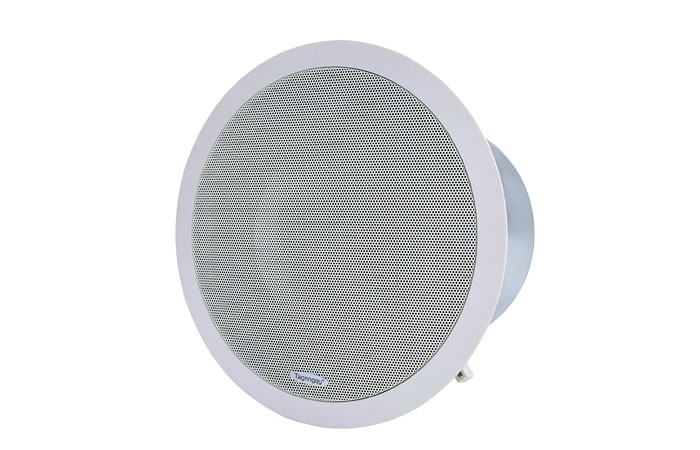

The CV series is a circular ceiling-mounted speaker designed for high suspension or embedded installation, and is a high-quality two-way resonant cavity ceiling-mounted speaker with coaxial point sound source design. It has a built-in high-power, low-loss, and low-distortion passive divider, which is used for music and language replay in various commercial applications and meetings, such as retail stores, restaurants, exhibition halls, science museums, airports, stations, hospitals, and conference rooms. The panel is made of ABS and metal mesh cover and is treated with rust-proof spray. The one-time stamping metal speaker box makes the low frequency more outstanding. It can work with 70V/100V or low impedance input. Its versatile configuration allows for embedded installation on the ceiling. Quick and easy installation hardware, simple and beautiful support feet, and pressure wire screw slots make installation and wiring more convenient.
Specifications:
Frequency Response: 75Hz - 20KHz
Sound Pressure Sensitivity (1 watt/1 meter): 92 dB SPL
Maximum Continuous Sound Pressure Level: 109 dB SPL
Peak Sound Pressure Level: 123 dB SPL
Input: 8 ohm / 70V / 100V
Coverage Angle (H×V) -6dB: Horizontal: 360°
Rated Output Power: 8 Ω: 50W
70V: 15W / 30W / 60W
100V: 15W / 30W / 60W
Peak Output Power: 80W
Low Frequency: 1x 8-inch precision low-frequency transducer
High Frequency: 1x 1-inch high-frequency driver
Low Frequency Diameter: 30mm
High Frequency Diameter: 25mm
Dimensions: 280mm (diameter) x 200mm (height)
Cutout Dimensions: 249mm (diameter); minimum ceiling clearance height: 200mm
Weight: Net weight: 3.7 kg / Gross weight: 4.4 kg
