Applications:
Religious places
Auditoriums
Cultural salons
Conference rooms
Transport hubs
Hotels
Features:

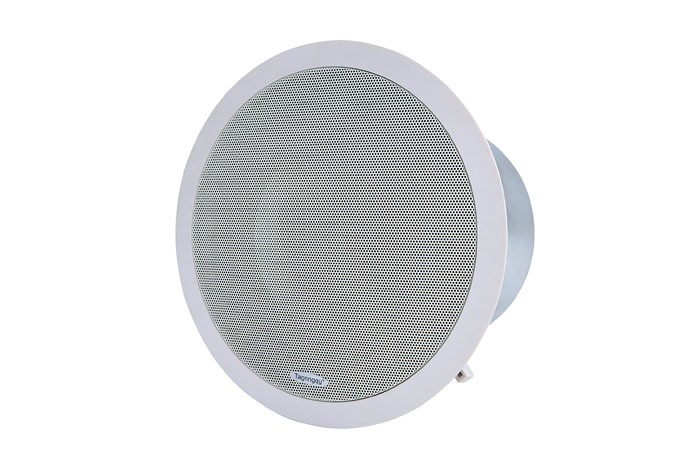

The CV series is a circular ceiling-mounted loudspeaker that meets the requirements of high suspension or embedded installation. It is a high-quality two-way resonant cavity ceiling-mounted speaker with a coaxial point source design and a built-in high-power low-loss and low-distortion passive divider. It is used for music and speech playback in a wide range of commercial applications, meetings, and other occasions, such as retail stores, restaurants, exhibition halls, science museums, airports, stations, hospitals, and conference rooms. The panel is made of ABS and metal mesh, and is treated with anti-rust spray. The one-time stamping metal speaker box cavity makes the low frequency more outstanding. It can work with 70V/100V or low-impedance input. Its multifunctional configuration can be embedded and installed in the ceiling. The quick and convenient installation hardware, simple and beautiful support feet, and wire pressure screw slots make installation and wiring more convenient.
Specifications:
Electrical Performance Parameters
Frequency Response Range: 80Hz - 20KHz
Sound Pressure Sensitivity (1W/1m): 91 dB SPL
Maximum Continuous Sound Pressure Level: 109 dB SPL
Peak Sound Pressure Level: 122 dB SPL
Input: 8 Ω / 70V / 100V
Coverage Angle (H×V) -6dB: Horizontal: 360°
Rated Output Power: 8 Ω: 40W, 70V: 15W / 30W / 60W, 100V: 15W / 30W / 60W
Peak Output Power: 60W
Low Frequency: 1× 6 inch precision low-frequency transducer
High Frequency: 1× 1 inch high-frequency driver
Low Frequency Diameter: 30mm
High Frequency Diameter: 25mm
Appearance Size: 240mm (diameter) x 170mm (height)
Opening Size: 209mm (diameter); Minimum ceiling clearance height: 170mm
Weight: Net weight: 2.9 kg / Gross weight: 3.4 kg
