Applications:
Religious venues
Auditoriums
Cultural salons
Conference rooms
Transportation hubs
Hotels
Features:

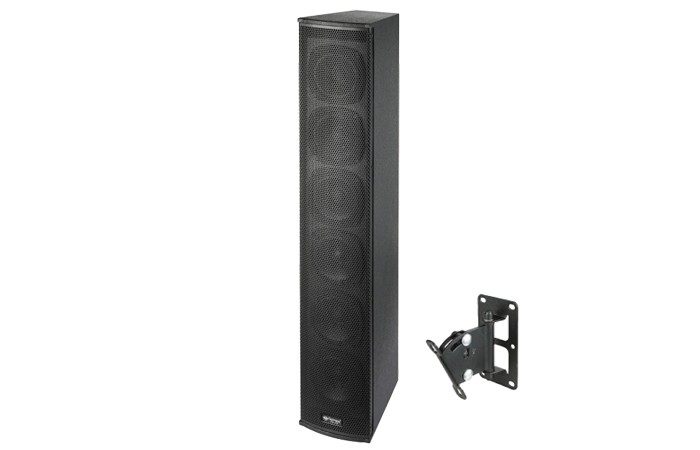

The DC series is a columnar loudspeaker with a high-grade birch plywood enclosure and a compact design that maximizes space utilization. It provides natural, high-fidelity sound for speech and music, even at extremely high sound pressure levels. It is suitable for sound systems with fixed loudspeakers, allowing for accurate sound reproduction in large spaces, limiting feedback, and improving sound directionality. For halls with long reverberation times, the DC series can be positioned as close to the walls as possible, simplifying installation and minimizing reverberation. Its excellent clarity reduces reverberation to a minimum, making it ideal for use in large, medium, and small conference rooms, churches, auditoriums, multipurpose halls, and other venues.
Specifications:
Electrical Performance Parameters
Frequency Range: 80Hz - 20KHz
Sound Pressure Sensitivity (1W/1m): 95 dB SPL
Maximum Continuous Sound Pressure Level: 110 dB SPL
Peak Sound Pressure Level: 113 dB SPL
Input Impedance: 6 Ω
Coverage Angle (H×V) -6dB: Horizontal: 120°, Vertical: 90°
Rated Output Power: 250W
Peak Output Power: 500W
Full Frequency Unit: 6 × 4-inch precision low-frequency transducers
Full Frequency: 25mm
Enclosure: Internally reinforced 12mm thick high-strength birch plywood
Dimensions (W×D×H): 145mm × 197mm × 800mm
Weight: Net weight: 9.5kg / Gross weight: 20kg (per pair)
