Applications:
Religious venues
Auditoriums
Cultural salons
Meeting rooms
Transportation hubs
Hotels
Features:

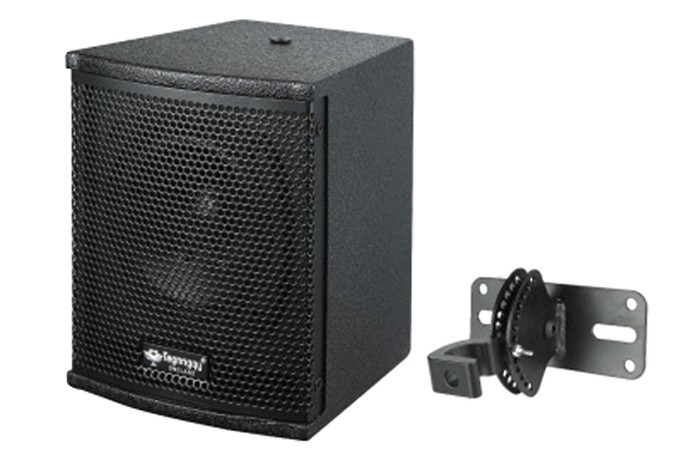

The DC series is a column-type speaker with a high-end birch plywood enclosure. Its compact design and high space utilization provide natural high-fidelity sound for language and music, even at high sound pressure levels, ensuring clear sound quality. It is suitable for sound systems with fixed speakers, allowing sound to be correctly reproduced in a wide space, limiting feedback and improving sound directionality. In large halls with long reverberation times, the DC series can be placed as close to the walls as possible to simplify installation while minimizing reverberation with superior clarity. It is ideal for use in various sized conference rooms, churches, auditoriums, and multipurpose halls.
Specifications:
Electrical Performance Parameters:
Frequency Response: 100Hz - 20KHz
Sound Pressure Sensitivity (1 watt, 1 meter): 90 dB SPL
Maximum Continuous Sound Pressure Level: 106 dB SPL
Peak Sound Pressure Value: 109 dB SPL
Input Impedance: 8Ω
Coverage Angle (H×V) -6dB: Horizontal 120° / Vertical 90°
Rated Output Power: 50W
Peak Output Power: 100W
Full-range unit: 1× 4-inch precision low-frequency transducer
Full-range: 25mm
Enclosure: Internally reinforced 12mm thick high-strength birch plywood
Dimensions (W×D×H): 145mm×150mm×175mm
Weight: Net weight: 1.8 kg / Gross weight: 4.2 kg (per pair)
