Applications:
Party KTV rooms
Bars, Slow Rock Bars, Performance Bars
High-end clubs
Villas
Features:

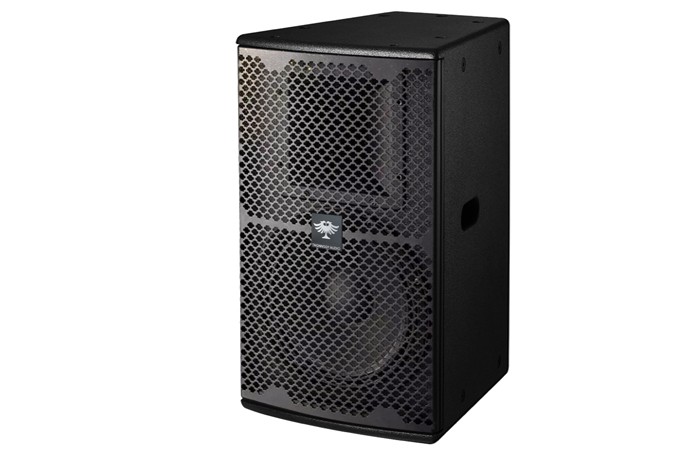

MGS-12 is a high-performance passive two-way speaker, composed of a 12-inch low-frequency unit and a 1.5-inch compression high-frequency driver. It is suitable for music venues that require continuous large dynamics, clear and distinct sound expression, and guarantees the perfect reproduction of music in high sound pressure environments. The enclosure is constructed with high-quality birch plywood, which has good rigidity, high internal resistance, and good moisture and temperature resistance, delivering the best sound quality and maximum flexibility.
Specifications:
Electrical Performance Parameters:
Frequency Range: 50Hz - 20KHz
Sensitivity (1W/1m): 99 dB SPL
Maximum Continuous Sound Pressure Level: 126 dB SPL
Peak Sound Pressure Level: 132 dB SPL
Input Impedance: 8 Ω
Coverage Angle (H×V) -6dB: Horizontal: 80°, Vertical: 80°
Rated Output Power: 800W
Peak Output Power: 1600W
Low Frequency: 1×12 inch precision low-frequency transducer
High Frequency: 1×1.5 inch precision neodymium boron high-frequency driver
Low Frequency Voice Coil Diameter: 75mm
High Frequency Voice Coil Diameter: 38mm (dual voice coil)
Enclosure: Internally reinforced 15mm thick high-strength birch plywood
Dimensions (W×D×H): 395mm×459mm×600mm
Weight: Net weight: 24.5kg / Gross weight: 26kg
