Applications:
Large-scale KTV rooms
Conference rooms
Classrooms
Features:

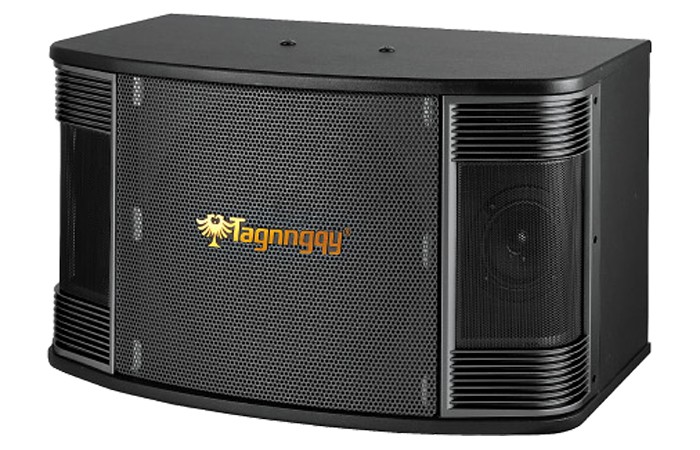

The OK-10 is designed with a reasonable and precise crossover design that effectively balances the different characteristics of each speaker unit, achieving a balanced frequency response. The auditory experience is harmonious, accurate, clear, layered, and comfortable, with full and elastic low frequencies and delicate and broad mid-to-high frequencies. It delivers natural, sweet sound quality effects. The streamlined mask and enclosure are tightly combined, showing a noble and atmospheric, integrated appearance. The top has an M8 suspension point, suitable for various hanging places.
Specifications:
Electrical Performance Parameters
Frequency Range: 50Hz - 20KHz
Sensitivity (1W/1m): 91 dB SPL
Maximum Continuous Sound Pressure Level: 113 dB SPL
Peak Sound Pressure Level: 116 dB SPL
Input Impedance: 8 Ω
Coverage Angle (H×V) -6dB: Horizontal: 110° Vertical: 90°
Rated Output Power: 180W
Peak Output Power: 360W
Low Frequency: 1x 10-inch precision low-frequency transducer
High Frequency: 2x 3-inch paper cone high-frequency driver
Low Frequency Voice Coil Diameter: 35mm
High Frequency Voice Coil Diameter: 14mm
Enclosure: 12mm environmentally friendly medium-density fiberboard with internal reinforcement
Dimensions (W×D×H): 518mm × 300mm × 304mm
Weight: Net Weight: kg (single unit) / Gross Weight: kg (pair)
