Applications:
Application Areas:
Banquet halls, conference rooms, auditoriums, multifunctional halls, shopping malls.
Features:
Specifications:
Electrical Performance Parameters

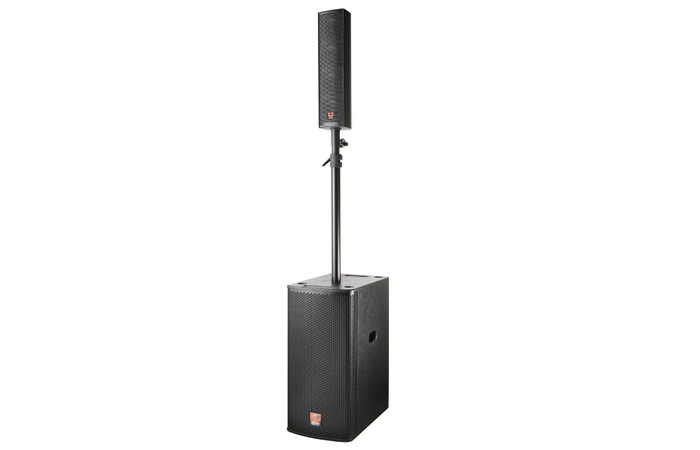

Model TG-210 Full-Range TG-210 Subwoofer
Frequency Range 90Hz - 20KHz 35Hz - 250Hz
Sound Pressure Sensitivity (1W/1m) 93 dB SPL 95 dB SPL
Maximum Continuous Sound Pressure Level 110 dB SPL 122 dB SPL
Peak Sound Pressure Level 113 dB SPL 125 dB SPL
Input Impedance 4 Ω 4 Ω
Coverage Angle (H×V) -6dB Horizontal: 120° Vertical: 90°
Rated Output Power 150W 500W
Peak Output Power 280W 1000W
Full-Range 4× 4-inch precision full-range transducers
Subwoofer 2× 10-inch precision low-frequency transducers
Full-Range 25mm
Subwoofer 65mm
DSP Active Amplifier Module
Output Power 300W + 800W (8 ohm)
450W + 1200W (4 ohm)
Power Requirements AC~ 90V--260V 50Hz/60Hz
Enclosure Aluminum alloy enclosure Internally reinforced with 18mm thick high-strength birch laminated board
Dimensions (W×D×H) 125mm×140mm×496mm 310mm×490mm×630mm
Weight Net weight: 8.5kg / Gross weight: 9.1kg Net weight: 25.1kg / Gross weight: 26.5kg
