Applications:
Application areas:
Live performances, mobile shows
Theaters, auditoriums
Concert halls, multi-purpose halls
Features:
Product Features:

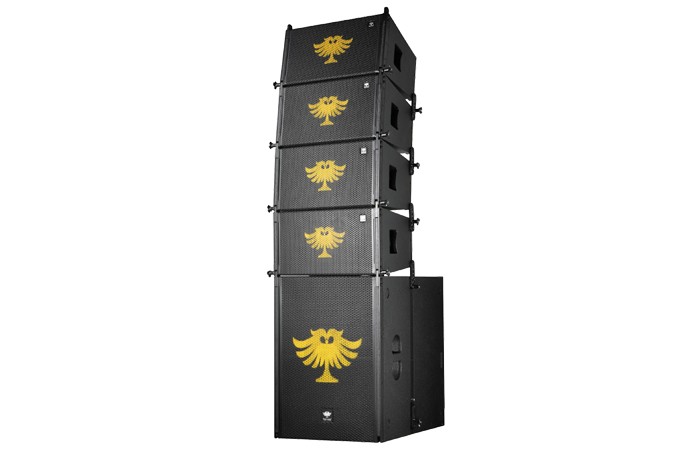

The GDA-10 full-range speaker and GDA-25A active ultra-low frequency speaker form an active line array system that can be stacked and suspended quickly and easily on the ground. The GDA active multi-purpose line array speaker system is a modular group that can be combined in various ways. Audio engineers using the GDA system can achieve amazing sound effects in audio engineering. The GDA active system is ideal for medium and small portable applications. The enclosure is made of high-quality birch plywood and is designed for easy transport and handling in terms of size, shape, weight, and equipment.
Specifications:
Frequency Range 60Hz - 20KHz 35Hz - 350Hz
Sound Pressure Sensitivity (1W/1m) Low frequency: 101 dB SPL High frequency: 103 dB SPL 108 dB SPL
Maximum Continuous Sound Pressure Level 125 dB SPL 136 dB SPL
Peak Sound Pressure Level 128 dB SPL 139 dB SPL
Input Impedance 8 Ω 4 Ω
Coverage Angle (H×V) -6dB Horizontal: 120° Vertical: 10°
Rated Output Power Low frequency: 270W High frequency: 80W 1000W
Peak Output Power Low frequency: 550W High frequency: 150W 2000W
Low Frequency 1× 10-inch precision neodymium boron low frequency transducer 2× 15-inch precision low frequency transducers
High Frequency 2× 1.4-inch precision high frequency drivers
Low Frequency Voice Coil Diameter 75mm 100mm
High Frequency Voice Coil Diameter 35mm
DSP Active Amplifier Module
Output Power 800W + 800W + 1200W (8 ohm) 1200W + 1200W + 1800W (4 ohm)
Power Requirements AC~ 90V -- 260V 50Hz / 60Hz
Enclosure Internally reinforced 15mm and 18mm thick high-strength birch plywood laminates
Dimensions (W×D×H) 580mm×365mm×278mm 580mm×790mm×685mm
Weight Net weight: 19kg / Gross weight: 20kg Net weight: 65kg / Gross weight: 68kg
