Applications:
Application areas:
Live performances, mobile shows
Theaters, auditoriums
Halls, multi-function halls
Features:
Product features:

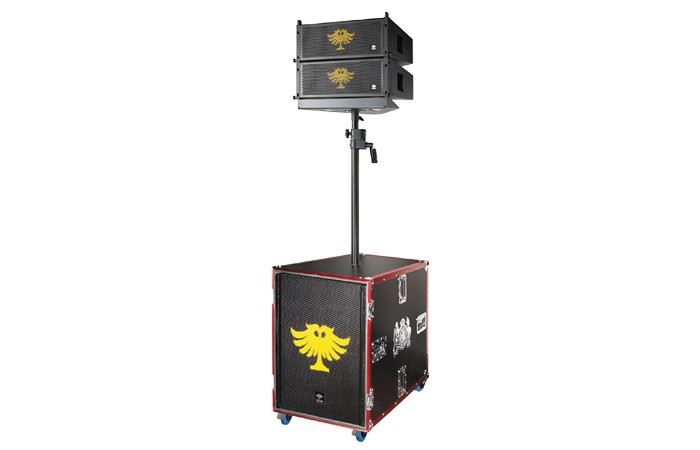

The GDA-6P active line array system consists of two double 6.5-inch neodymium low frequency units, one 1.75-inch neodymium high frequency unit, and one active ultra-low frequency speaker with dual 15-inch low frequency units. Two full-range speakers overlap and are quickly and securely installed on the active ultra-low frequency speaker using the built-in speaker mounting pole to form a mono replay system. The enclosure is made of high-quality birch plywood and is designed for easy transport and handling in terms of size, shape, weight, and equipment, making it very suitable for medium and small portable applications.
Specifications:
Electrical performance parameters
Model GDA-6P Full Range GDA-6P Ultra-Low Frequency
Frequency response range 65Hz - 20KHz 35Hz - 350Hz
Sound pressure sensitivity (1W.1m) 98 dB SPL 105 dB SPL
Maximum continuous sound pressure level 115 dB SPL 133 dB SPL
Peak sound pressure level 118 dB SPL 136 dB SPL
Input impedance 4 Ω 4 Ω
Coverage angle (H×V) -6dB Horizontal: 90 ° Vertical: 30 °
Rated output power 350W 1000W
Peak output power 700W 2000W
Low frequency 2× 6.5-inch precision neodymium-boron low frequency transducers 2× 15-inch precision low frequency transducers
High frequency 1× 1.75-inch precision neodymium-boron high frequency driver
Low frequency 50mm 100mm
High frequency 44mm
DSP active power amplifier module
Output power 400W + 400W + 1000W (8 ohm) 600W + 600W + 1500W (4 ohm)
Power requirements AC~ 90V -- 260V 50Hz / 60Hz
Enclosure Internal reinforced 15mm and 18mm thick high-strength birch plywood
Dimensions (W×D×H 500mm×326mm×215mm 500mm×790mm×685mm
Weight Net weight: 10.5 kg / Gross weight: 12 kg Net weight: 64 kg / Gross weight: 67 kg
