Applications:
Application Areas:
Live performances, mobile shows
Theaters
Auditoriums, multi-purpose halls
Features:
Product Features:

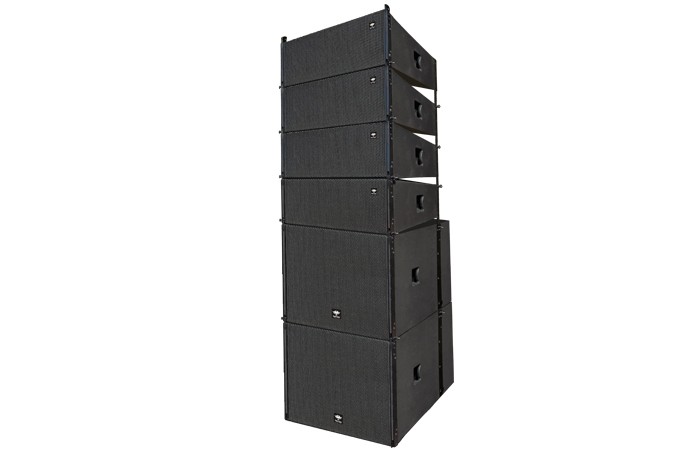

The active line array system composed of GDA-210 full-range speaker and GDA-18SUB active ultra-low frequency speaker can be stacked and suspended on the ground quickly and easily. The GDA active multi-purpose line array loudspeaker system is a modular group of line array applications that can be combined in various forms. Audio engineers can achieve amazing sound effects with the GDA system in the field of audio engineering. The GDA active system is very suitable for portable applications in medium and small sizes. The enclosure is made of high-grade birch plywood laminates and is designed to be easy to transport and move in terms of size, shape, weight and equipment.
Specifications:
Electrical Performance Parameters
Model GDA-210 GDA-18SUB
Frequency Response 60Hz - 20KHz 30Hz - 350Hz
Sound Pressure Sensitivity (1W/1m) 105dB SPL 105 dB SPL
Max Continuous Sound Pressure Level 127 dB SPL 128 dB SPL
Peak Sound Pressure Level 130 dB SPL 131 dB SPL
Input Impedance 8 Ω 8 Ω
Coverage Angle (H×V) -6dB Horizontal: 100° Vertical: 25°
Rated Output Power 800W 800W
Peak Output Power 1600W 1600W
Low Frequency 2 × 10-inch precision neodymium boron low frequency transducers 1 × 18-inch precision low frequency transducer
High Frequency 1 × 3-inch precision neodymium boron high frequency driver
Low Frequency Diameter 65mm 100mm
High Frequency Diameter 75mm
DSP Active Amplifier Module
Output Power 1000W+1000W+1200W (8 ohm)
1600W+1600W+1900W (4 ohm)
Power Requirements AC ~ 90V—260V 50Hz/60Hz
Enclosure Internally reinforced 18mm thick high-strength birch plywood laminates Internally reinforced 18mm thick high-strength birch plywood laminates
Dimensions (W×D×H) 600mm × 566mm × 296mm 600mm × 715mm × 488mm
Weight Net weight: 27kg / Gross weight: 29kg Net weight: 47kg / Gross weight: 49.5kg
