Applications:
Application Areas:
Live performances, mobile performances
Theater, auditoriums
Halls, multifunctional halls
Features:
Product Features:

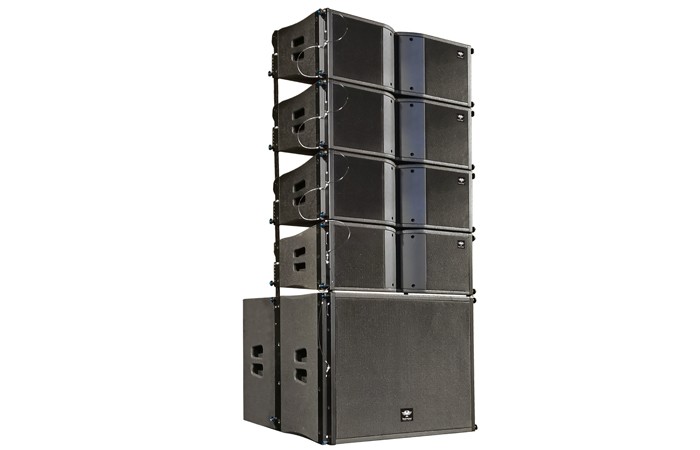

The GDA-208 active line array system consists of dual 8-inch low-frequency units and a single 2.5-inch high-frequency unit to form a full-range speaker, and the GDA-208SUB active subwoofer consists of a single 18-inch low-frequency unit. Four full-range speakers can be overlapped and quickly and safely installed together with the built-in speaker connectors to form a mono replay system with two active subwoofers. The enclosures are made of high-grade birch plywood and are designed to be easy to transport and handle in terms of size, shape, weight, and equipment. They are very suitable for medium and small portable applications.
Specifications:
Electrical Performance Parameters
Model GDA-208 GDA-208SUB
Frequency Response 60Hz - 20KHz 30Hz - 350Hz
Sensitivity (1W/1m) 100 dB SPL 105 dB SPL
Maximum Continuous Sound Pressure Level 123 dB SPL 128 dB SPL
Peak Sound Pressure Level 126 dB SPL 131 dB SPL
Input Impedance 8 Ω 8 Ω
Coverage Angle (H×V) -6dB Horizontal: 100° Vertical: 25°
Rated Output Power 550W 800W
Peak Output Power 1100W 1600W
Low Frequency 2×8 inch precision low frequency transducers 1×18 inch precision low frequency transducer
High Frequency 1× 2.5 inch precision high frequency driver
Low Frequency 50mm 100mm
High Frequency 65mm
DSP Active Amplifier Module
Output Power 1000W+1000W+1200W (8 ohm)
1600W+1600W+1900W (4 ohm)
Power Requirements AC ~ 90V—260V 50Hz / 60Hz
Enclosure Internally reinforced 15mm thick high-strength birch plywood Internally reinforced 18mm thick high-strength birch plywood
Dimensions (W×D×H) 698mm×380mm×250mm 698mm×732mm×543mm
Weight Net Weight: 26kg / Gross Weight: 27.5kg Net Weight: 58kg / Gross Weight: 60.5kg
