Applications:
Application Areas:
Live performances, touring shows
Theaters, auditoriums
Halls, multi-purpose venues
Sports facilities
Features:
Product Features:

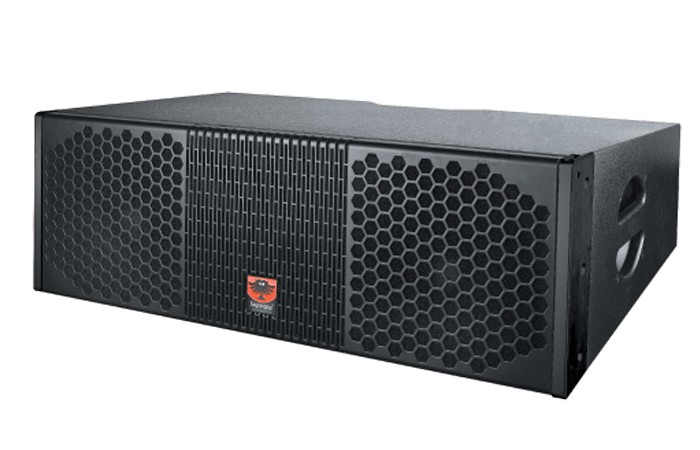

LA-612 adopts a passive three-way design, equipped with a 12-inch low-frequency unit, a 12-inch mid-frequency unit, and a 3-inch compression high-frequency unit. The enclosure shell is made of high-end birch plywood to effectively avoid frequency overlap distortion, optimize resolution, reproduction, and sound imaging positioning, and has excellent transient and phase characteristics. When used with the ML-218 ultra-low frequency speaker, the low frequency can be extended to 30Hz. Suitable for theaters, bars, literary performances, and other occasions.
Specifications:
Electrical Performance Parameters
Frequency Response Range: 50Hz - 20KHz
Sound Pressure Sensitivity (1W/1m): Low Frequency: 101dB SPL, Mid Frequency: 101dB SPL, High Frequency: 106dB SPL
Maximum Continuous Sound Pressure Level: 128dB SPL
Peak Sound Pressure Value: 131dB SPL
Input Impedance: 8 Ω
Coverage Angle (H×V) -6dB: Horizontal: 90°, Vertical: 30°
Rated Output Power: Low Frequency: 400W, Mid Frequency: 400W, High Frequency: 100W
Peak Output Power: Low Frequency: 800W, Mid Frequency: 800W, High Frequency: 150W
Low Frequency: 1 × 12-inch precision low-frequency transducer
Mid Frequency: 1 × 12-inch precision mid-frequency transducer
High Frequency: 1 × 3-inch precision high-frequency driver
Low Frequency: 75mm
Mid Frequency: 75mm
High Frequency: 75mm
Enclosure: Internally reinforced 15mm thick high-strength birch plywood laminated board
Dimensions (W×D×H): 1040mm × 520mm × 360mm
Weight: Net weight: 51.5 kg / Gross weight: 54 kg
