Applications:
Application areas:
Live performances, touring
Theatres
Auditoriums, multi-purpose halls
Stadiums
Features:
Product features:

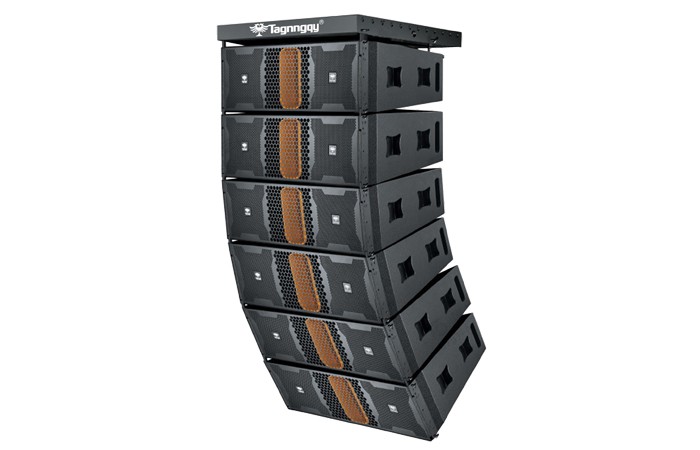

The TA-120VX is a full-range, externally divided line array speaker designed specifically for performances. It is equipped with two 12-inch neodymium low-frequency units, one 10-inch neodymium mid-frequency unit, and one 3-inch neodymium high-frequency driver, combined with a proprietary high-frequency horn, which reproduces audio with clarity, richness, and sweetness. The TA-120VX's enclosure is made of high-end birch plywood boards coated with high-strength and environmentally friendly paint, manufactured using precise computer calculations, which reduces the distortion caused by the enclosure's resonance energy to a minimum. It comes with a dedicated precision hanging accessory for easy and quick installation.
Specifications:
TA-120VX
Electrical Performance Parameters
Frequency Range: 50Hz - 20KHz
Sound Pressure Sensitivity (1W/1m): Low Frequency: 103 dB SPL, Mid Frequency: 103 dB SPL, High Frequency: 105 dB SPL
Maximum Continuous Sound Pressure Level: 138 dB SPL
Peak Sound Pressure Level: 141 dB SPL
Input Impedance: Low Frequency: 8 Ω, Mid Frequency: 8 Ω, High Frequency: 8 Ω
Coverage Angle (H×V) -6dB: Horizontal: 100°, Vertical: 10°
Rated Output Power: Low Frequency: 750W, Mid Frequency: 300W, High Frequency: 150W
Peak Output Power: Low Frequency: 1500W, Mid Frequency: 550W, High Frequency: 250W
Low Frequency: 2× 12-inch precision neodymium low-frequency transducers
Mid Frequency: 1× 10-inch precision neodymium mid-frequency transducer
High Frequency: 1× 3-inch precision neodymium high-frequency driver
Low Frequency Driver: 75mm
Mid Frequency Driver: 75mm
High Frequency Driver: 75mm
Enclosure: Internally reinforced 15mm and 25mm thick high-strength birch plywood laminates
Dimensions (W×D×H): 1100mm × 616mm × 370mm
Weight: Net Weight: 48.5kg / Gross Weight: 51.5kg
